The 30-inch Apple Cinema HD Display delivers an amazing 2560 x 1600 pixel resolution. Designed specifically for the creative professional, this display provides more space for easier access to all the tools and palettes needed to edit, format and composite your work. Combine this display with a PowerMac G5 and there's no limit to what you can achieve.
The Cinema HD features an active-matrix liquid crystal display that produces flicker-free images that deliver twice the brightness, twice the sharpness and twice the contrast ratio of a typical CRT display. Unlike other flat panels, it's designed with a pure digital interface to deliver distortion-free images that never need adjusting. With over 4 million digital pixels, the display is uniquely suited for scientific and technical applications such as visualizing molecular structures or analyzing geological data.
Offering accurate, brilliant color performance, the Cinema HD delivers up to 16.7 million colors across a wide gamut allowing you to see subtle nuances between colors from soft pastels to rich jewel tones. A wide viewing angle ensures uniform color from edge to edge. Apple's ColorSync technology allows you to create custom profiles to maintain consistent color onscreen and in print. The result: You can confidently use this display in all your color-critical applications.
Housed in a new aluminum design, the display has a very thin bezel that enhances visual accuracy. Each display features two FireWire 400 ports and two USB 2.0 ports, making attachment of desktop peripherals, such as iSight, iPod, digital and still cameras, hard drives, printers and scanners, even more accessible and convenient. Taking advantage of the much thinner and lighter footprint of an LCD, the new displays support the VESA (Video Electronics Standards Association) mounting interface standard. Customers with the optional Cinema Display VESA Mount Adapter kit gain the flexibility to mount their display in locations most appropriate for their work environment.
The Cinema HD features a single cable design with elegant breakout for the USB 2.0, FireWire 400 and a pure digital connection using the industry standard Digital Video Interface (DVI) interface. The DVI connection allows for a direct pure-digital connection to Apple's latest aluminum Power Mac and PowerBook systems, as well as to Windows-based desktops
Features:
Unrivaled display performance
30-inch (viewable) active-matrix liquid crystal display provides breathtaking image quality and vivid, richly saturated color.
Support for 2560-by-1600 pixel resolution for display of high definition still and video imagery.
Wide-format design for simultaneous display of two full pages of text and graphics.
Industry standard DVI connector for direct attachment to Power Mac PowerBook as well as Windows-based desktops
Incredibly wide (170 degree) horizontal and vertical viewing angle for maximum visibility and color performance.
Lightning-fast pixel response for full-motion digital video playback.
Support for 16.7 million saturated colors, for use in all graphics-intensive applications.
Simple setup and operation
Single cable with elegant breakout for connection to DVI, USB and FireWire ports
Built-in two-port USB 2.0 hub for easy connection of desktop peripheral devices.
Two FireWire 400 ports to support iSight and other desktop peripherals
Sleek, elegant design
Huge virtual workspace, very small footprint.
Narrow Bezel design to minimize visual impact of using dual displays
Unique hinge design for effortless adjustment
Support for VESA mounting solutions (Apple Cinema Display VESA Mount Adapter sold separately)
Technical specifications
Screen size (diagonal viewable image size)
Apple Cinema HD Display: 30 inches (29.7-inch viewable)
Screen type
Thin film transistor (TFT) active-matrix liquid crystal display (AMLCD)
Resolutions
2560 x 1600 pixels (optimum resolution)
2048 x 1280
1920 x 1200
1280 x 800
1024 x 640
Display colors (maximum)
16.7 million
Viewing angle (typical)
170° horizontal; 170° vertical
Brightness (typical)
30-inch Cinema HD Display: 270 cd/m2
Contrast ratio (typical)
400:1
Response time (typical)
16 ms
Contrast ratio (typical)
400:1
Pixel pitch
30-inch Cinema HD Display: 0.250 mm
Screen treatment
Antiglare hardcoat
User controls (hardware and software)
Display Power,
System sleep, wake
Brightness
Monitor tilt
Connectors and cables
Cable
DVI (Digital Visual Interface)
FireWire 400
USB 2.0
DC power (24 V)
Connectors
Two-port, self-powered USB 2.0 hub
Two FireWire 400 ports
Kensington security port
VESA mount adapter
Requires optional Cinema Display VESA Mount Adapter (M9649G/A)
Compatible with VESA FDMI (MIS-D, 100, C) compliant mounting solutions
Electrical requirements
Input voltage: 100-240 VAC 50-60Hz
Maximum power when operating: 150W
Energy saver mode: 3W or less
Environmental requirements
Operating temperature: 50° to 95° F (10° to 35° C)
Storage temperature: -40° to 116° F (-40° to 47° C)
Operating humidity: 20% to 80% noncondensing
Maximum operating altitude: 10,000 feet
Agency approvals
FCC Part 15 Class B
EN55022 Class B
EN55024
VCCI Class B
AS/NZS 3548 Class B
CNS 13438 Class B
ICES-003 Class B
ISO 13406 part 2
MPR II
IEC 60950
UL 60950
CSA 60950
EN60950
ENERGY STAR
TCO '03
Size and weight
30-inch Apple Cinema HD Display
Height: 21.3 inches (54.3 cm)
Width: 27.2 inches (68.8 cm)
Depth: 8.46 inches (21.5 cm)
Weight: 27.5 pounds (12.5 kg)
System Requirements
Requires Power Mac G5 with NVIDIA GeForce 6800 Ultra graphics card
The new Apple Cinema Display lineup is the perfect companion for your Power Mac G5 or PowerBook. Its annodized aluminum case is sleek and elegant, and lets you use two displays much closer to each other than ever before. The new lineup is bigger, brighter and much more compatible. Choose an optional VESA mount to install your display anywhere. Connect one or two displays via industry-standard DVI.
Technical Specs
| Manufacturer | Apple, Inc
|
| Manufacturer Part Number | M9179LL/A
|
| Manufacturer Website Address | www.apple.com
|
| Brand Name | Apple
|
| Product Name | M9179LL/A LCD Cinema HD Display
|
| Marketing Information | The new Apple Cinema Display lineup is the perfect companion for your Power Mac G5 or PowerBook. Its annodized aluminum case is sleek and elegant, and lets you use two displays much closer to each other than ever before. The new lineup is bigger, brighter and much more compatible. Choose an optional VESA mount to install your display anywhere. Connect one or two displays via industry-standard DVI.
|
| Product Type | LCD Monitor
|
| Screen Size | 30"
|
| Screen Mode | WQXGA
|
| Maximum Response Time | 16 ms
|
| Horizontal Viewing Angle | 170°
|
| Vertical Viewing Angle | 170°
|
| Mount Type | - Wall-mountable
- Arm-mountable
|
| Maximum Resolution | 2560 x 1600
|
| Color Support | 16.7 Million Colors (24-bit)
|
| Contrast Ratio | 400:1
|
| Brightness | 270 Nit
|
| DVI | Yes
|
| FireWire/i.LINK | Yes
|
| Color | Silver
|
| Height | 21.30"
|
| Width | 27.20"
|
| Depth | 8.46"
|
| Weight (Approximate) | 27.50 lb
|
| Additional Information | User controls (hardware and software): Display power System sleep System wake Brightness Display tilt Dual display support:
A second Apple flat-panel display can be used with a Power Mac G4 or G5 via an ADC to DVI adapter.
|
| System Requirements | Power Mac G5 and NVIDIA GeForce 6800 Ultra DDL graphics card (offered as CTO option for new Power Mac G5 customers and as a kit for current Power Mac G5 customers).
|
| Certifications & Standards | MPR II TCO '03 EN55024 EN60950 UL 60950 IEC 60950 CSA 60950 ENERGY STAR ISO 13406 part 2 VCCI Class B EN55022 Class B ICES-003 Class B CNS 13438 Class B FCC Part 15 Class B AS/NZS 3548 Class B
|
| Platform Support |
|
| Standard Warranty | 1 Year Limited
|
Click to view larger images:

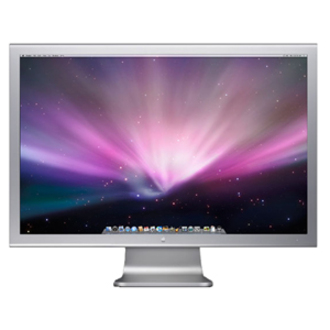

Front

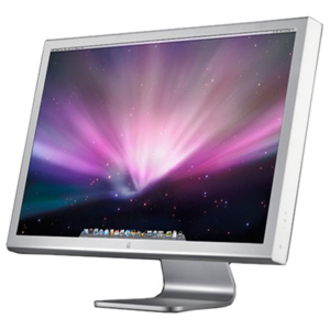

Left

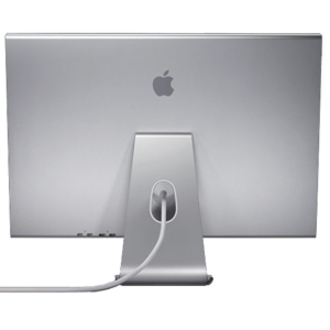

Rear
